How to Design Production-Ready AI Systems

In many demos, “AI architecture” is just a single box labelled OpenAI. In production, that picture breaks quickly. You have partial failures, latency spikes, rate limits, changing models, evolving data and new product requirements.

When I design AI systems as an AI solutions architect and technical delivery leader, I don’t start from the model. I start from behaviour: What guarantees do we need? Then I map those guarantees to a set of layers – model, orchestration, retrieval, observability and governance.

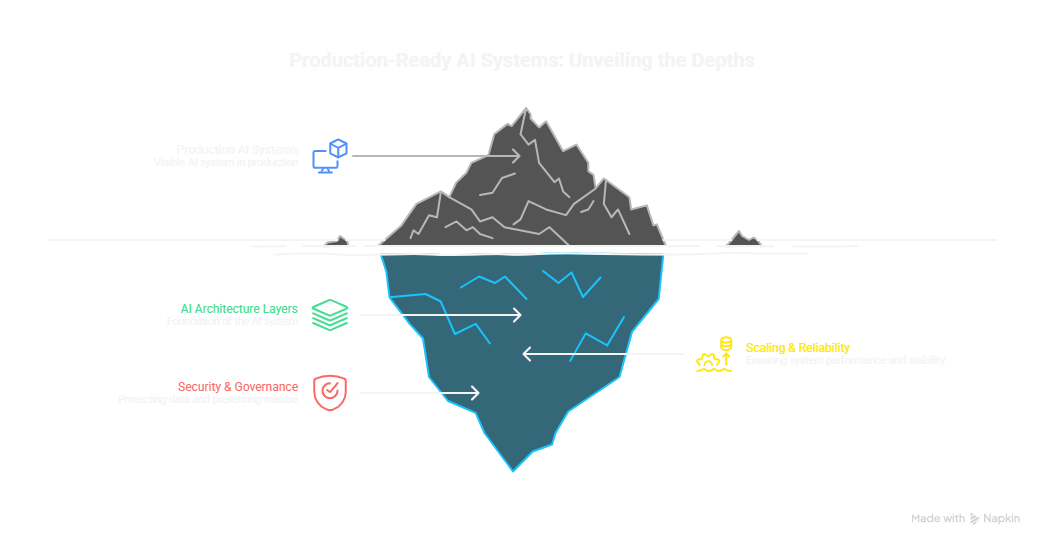

1. Think in layers, not endpoints

A production AI system is a set of collaborating layers. Each layer has a job, constraints and failure modes.

High‑level architecture

When I look at an AI system end‑to‑end, I’m usually thinking about at least four separate concerns:

Model layer – Where the raw intelligence lives (OpenAI, Anthropic, Gemini, or custom models).
Orchestration layer – How we structure calls, tools and agents (for example using LangChain, LangGraph or custom orchestrators) so behaviour is explicit instead of buried in ad‑hoc code.
Retrieval layer – How we ground the model in our own data with RAG and vector stores like Pinecone, Weaviate or FAISS.
Observability & monitoring – How we see what’s happening and keep it healthy with logs, traces and evaluations.

The goal is to avoid hiding all complexity inside “the prompt”. Prompts are important, but in production they sit inside a larger architecture that has to scale, be observable and respect constraints.

Model layer: more than “call GPT‑4”

In the model layer, I care about interfaces and contracts. Instead of sprinkling raw `openai.chat.completions.create` calls everywhere, I centralise them behind a small abstraction, for example:

✓Define a small set of tasks (summarise, classify, generate, route, plan).
✓For each, define inputs, expected outputs and failure behaviours.
✓Hide provider‑specific quirks behind this layer so you can switch models later.

Orchestration layer: where behaviour lives

Orchestration is where you implement multi‑step behaviour: tools, agents, routing, retries, fallbacks. Frameworks like LangChain, LangGraph, CrewAI or AutoGen help, but the key questions are:

✓How do we break the user request into steps?
✓Which tools or APIs are allowed at each step?
✓How do we recover if one sub‑step fails?

Retrieval layer: making RAG real

Retrieval‑augmented generation (RAG) is more than “embed and pray”. I treat the retrieval layer as its own system:

✓Embeddings: how we chunk, embed and update content.
✓Vector search: vector DB choice (Pinecone, Weaviate, FAISS) and index configuration.
✓Ranking: how we score and re‑rank candidates before feeding them to the model.
✓Hybrid search: combining keyword and vector search when needed.

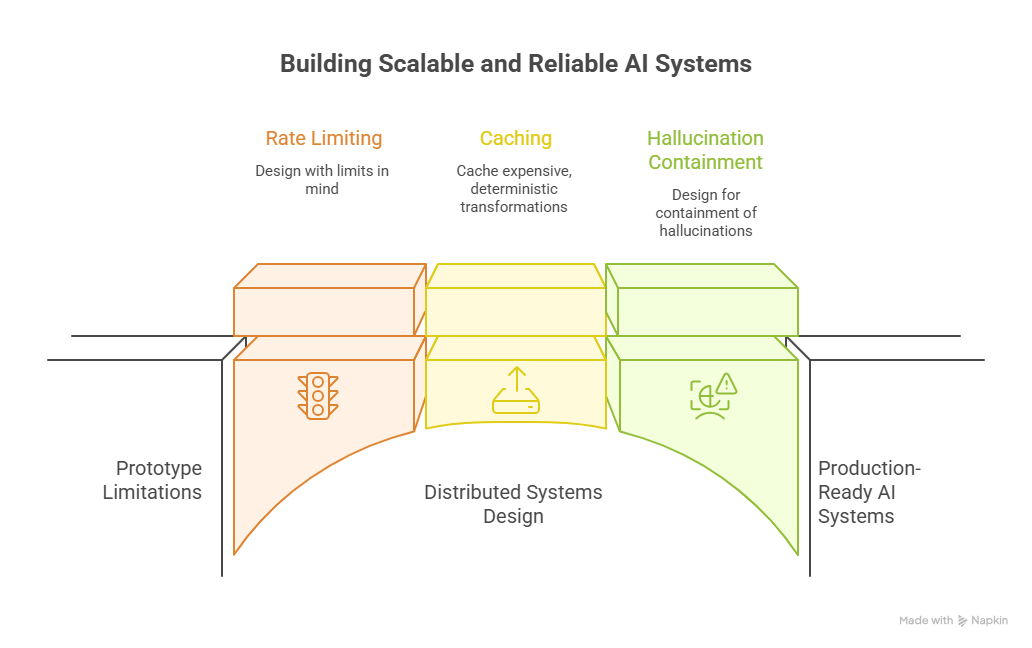

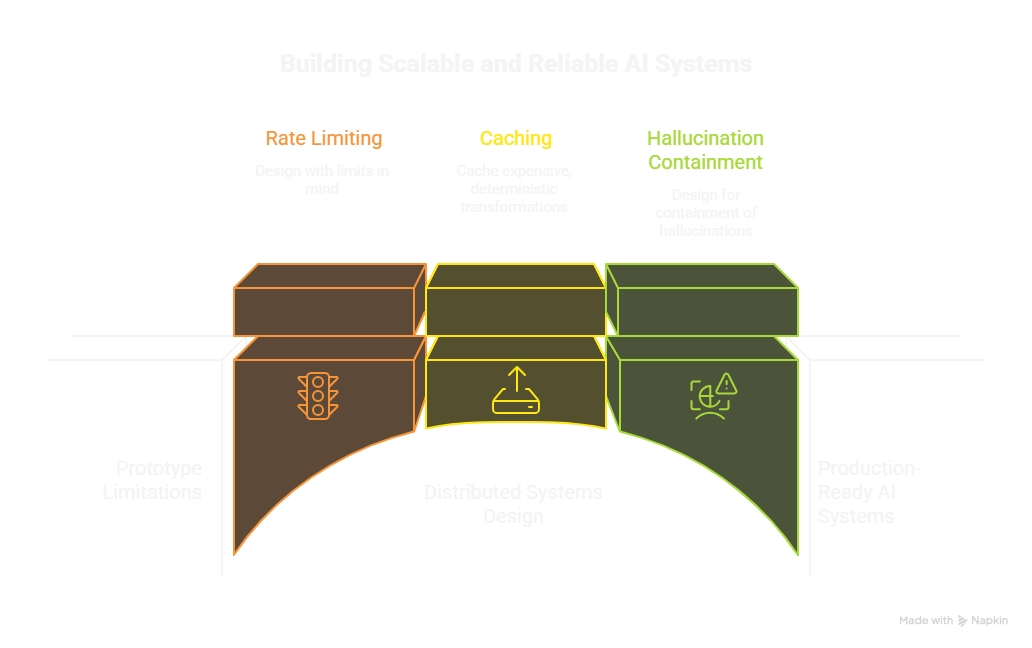

2. Scaling, reliability and observability

Once you move beyond prototypes, most problems look less like “prompt engineering” and more like classic distributed systems.

Rate limiting is part of the design

All major providers enforce rate limits. Instead of treating them as an after‑the‑fact problem, I design with limits in mind from the start:

✓Use queues or background workers for non‑interactive and batch workloads.
✓Implement exponential backoff with jitter for retries, not tight retry loops.
✓Expose meaningful, user‑friendly errors instead of a generic “something went wrong”.

Caching: where it actually helps

I cache at multiple levels where it makes sense – especially for expensive, deterministic transformations:

✓Input‑normalised response caches (for example, summarising the same document many times).
✓Feature‑level caches when AI results feed downstream services or analytics.
✓Short‑lived caches around vector queries when traffic is bursty.

Handling hallucinations

We can’t remove hallucinations entirely, but we can design for containment so that mistakes are visible and recoverable:

✓Ground answers with retrieved context and show citations so users can verify sources.
✓Use validators or secondary checks for critical outputs (for example, schemas, business rules).
✓Route high‑risk or high‑impact requests to human review before they take effect.

3. Security, governance and trust

AI systems introduce new failure modes, but security and governance questions are familiar: who can do what, with which data, under which rules?

Prompt injection and data leakage

Prompt injection is the AI version of “user‑controlled input”. I don’t rely on a single defence; I combine several:

✓Separate system instructions from user content clearly.
✓Constrain tools and actions the model is allowed to trigger.
✓Avoid sending sensitive data unless it’s strictly required for the task.

Governance & auditing

For serious products, we need to be able to answer: “Why did the system do that?” That means:

✓Logging prompts, context and decisions with appropriate redaction.
✓Attaching metadata (user, tenant, feature flag, model version) to each call.
✓Being able to replay or simulate flows for incident analysis.

Policies as part of the design

Finally, I make policy visible in the architecture – not just in documents:

✓Which data sources are allowed for which features.
✓Which actions require human review.
✓How long we retain prompts and outputs.

If you approach AI work with the same care you bring to any other critical system – clear architecture, observability, scaling plans, security and governance – you dramatically increase the chances that your AI features will survive real‑world use.

If you’re exploring a new AI initiative or need a second opinion on an existing system, I’m always happy to discuss how to make it more robust.
